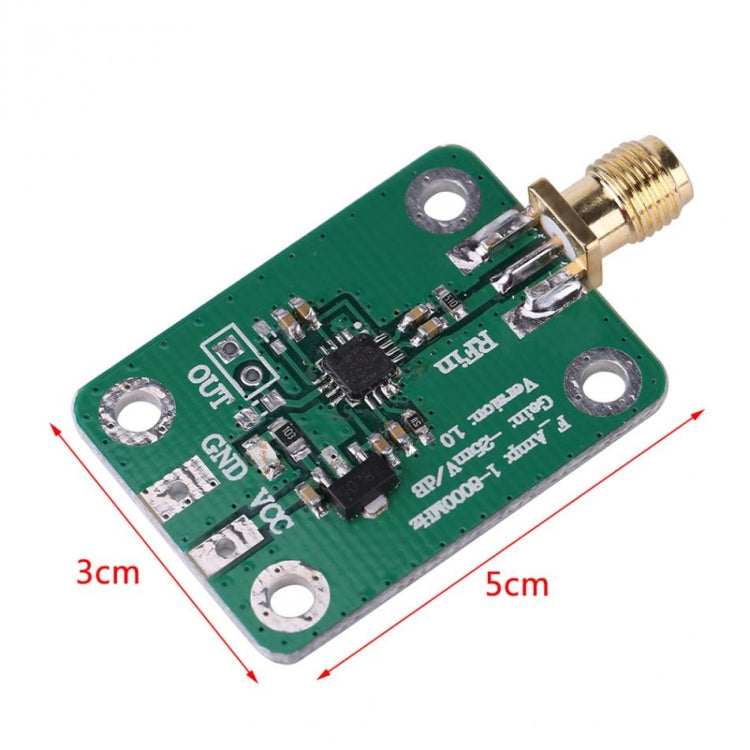

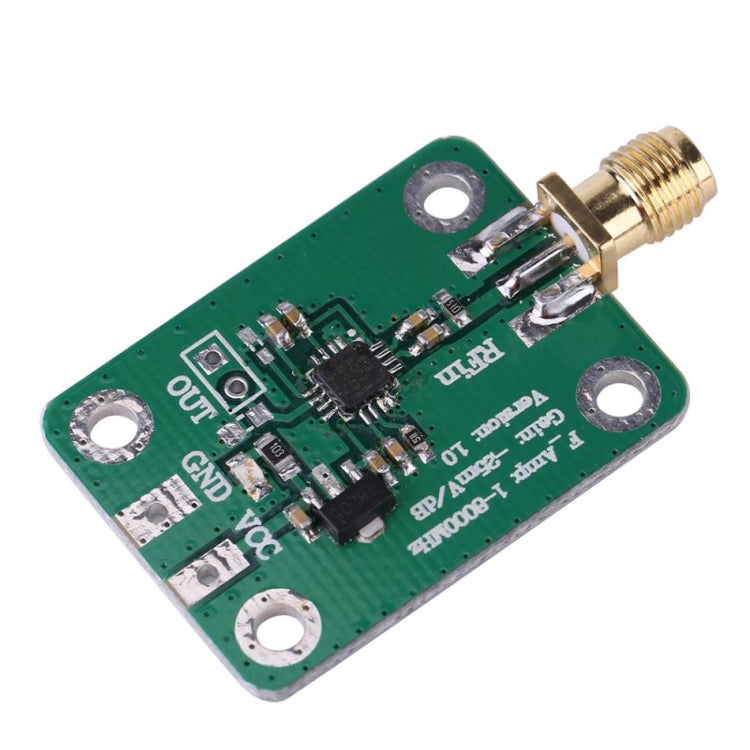

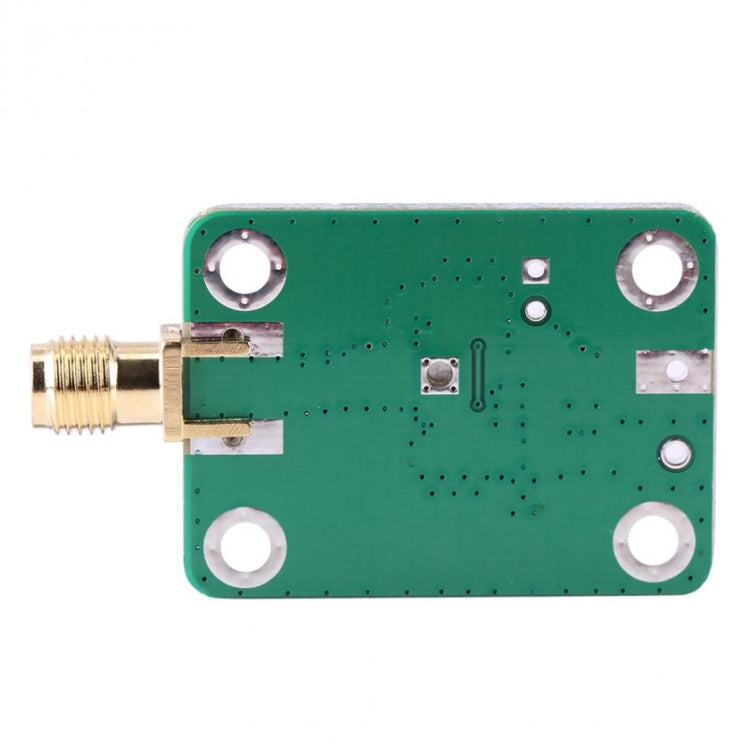

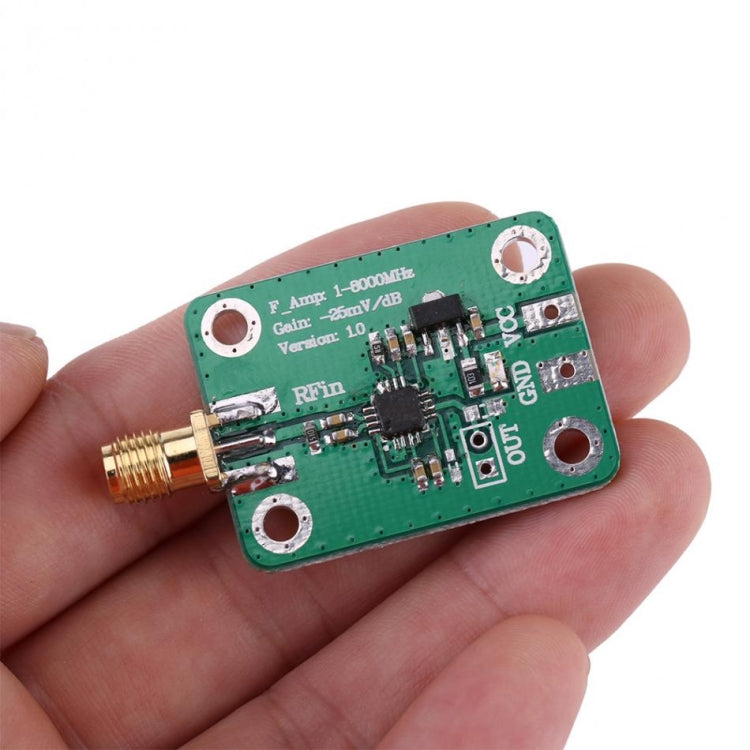

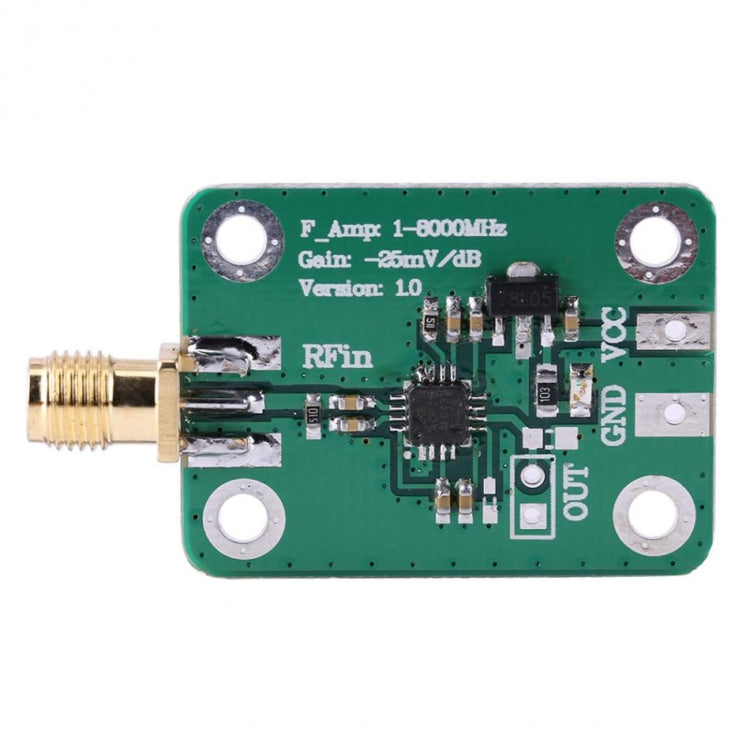

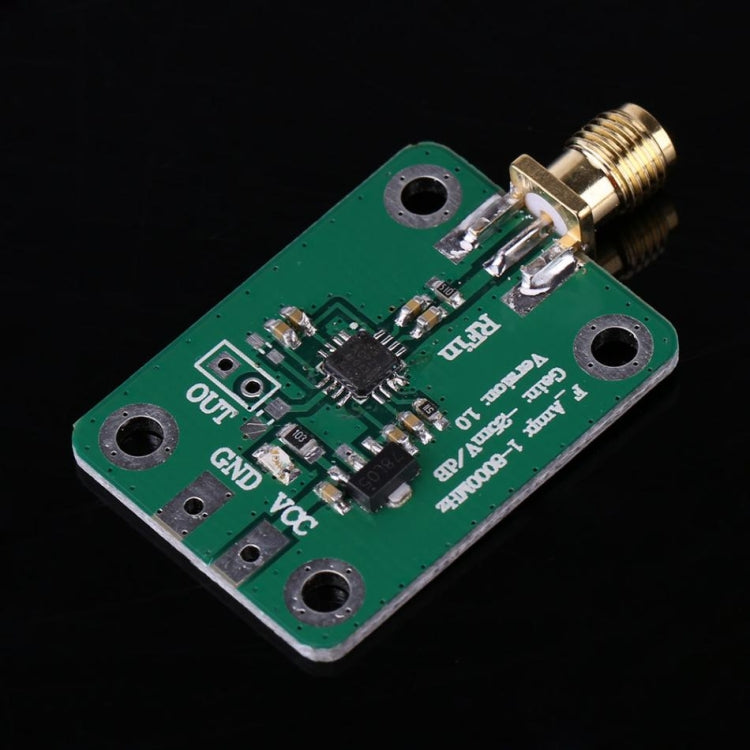

AD8318 RF Logarithmic Detector 1-8000MHz Dynamometer 70dB RSSI Measurement Power Meter

Rs. 1,939.00
Quantity

📦 Description


1. Working frequency: 1-8000MHz
2. Dynamic range: -65dBm to + 5dBm
3. Detection slope: -25 mV / dB (typical value)
4. Detection output voltage range: 0.5--2.1V
5. Power supply voltage: 7--15VDC (including power supply voltage regulator circuit)
6. Input impedance: 50 ohm
7. RF interface: standard SMA female
Specification:
Package Weight
One Package Weight 0.10kgs / 0.23lb
One Package Size 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch
Qty per Carton 288
Carton Weight 30.00kgs / 66.14lb
Carton Size 50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
Loading Container 20GP: 177 cartons * 288 pcs = 50976 pcs
40HQ: 412 cartons * 288 pcs = 118656 pcs
