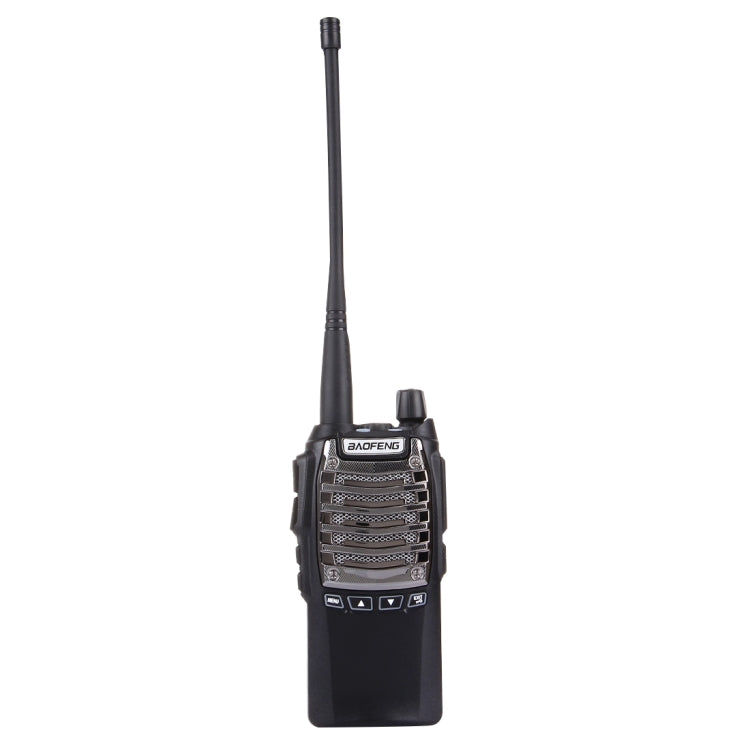

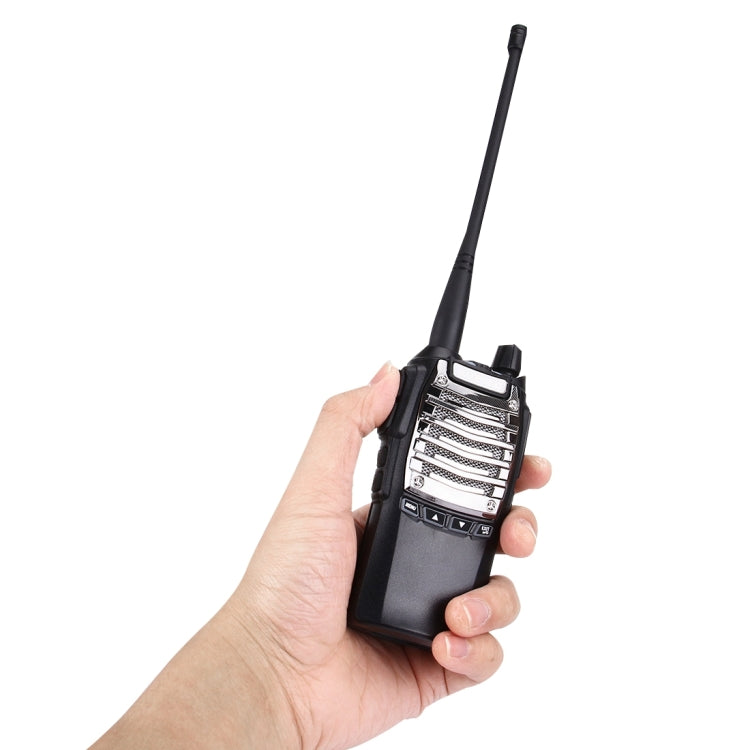

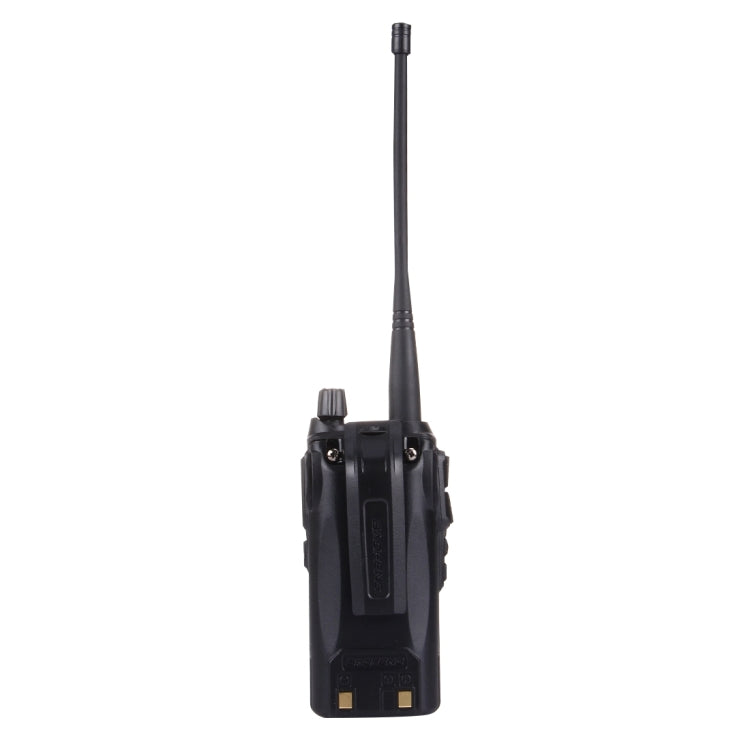

BAOFENG UV-8D Professional Dual Band Dual PTT Key Two-way Radio Walkie Talkie FM Transmitter, UV-8D

Rs. 3,152.00
Quantity
Option:

📦 Description

1. Lightweight design, compact structure, easy to carry
2. Emergency alarm call, receiving alarm call
3. Clear sound quality
4. Noise reduction circuit
5. Strong and durable walkie talkie, adopt PC ABS material
6. High-capacity lithium battery

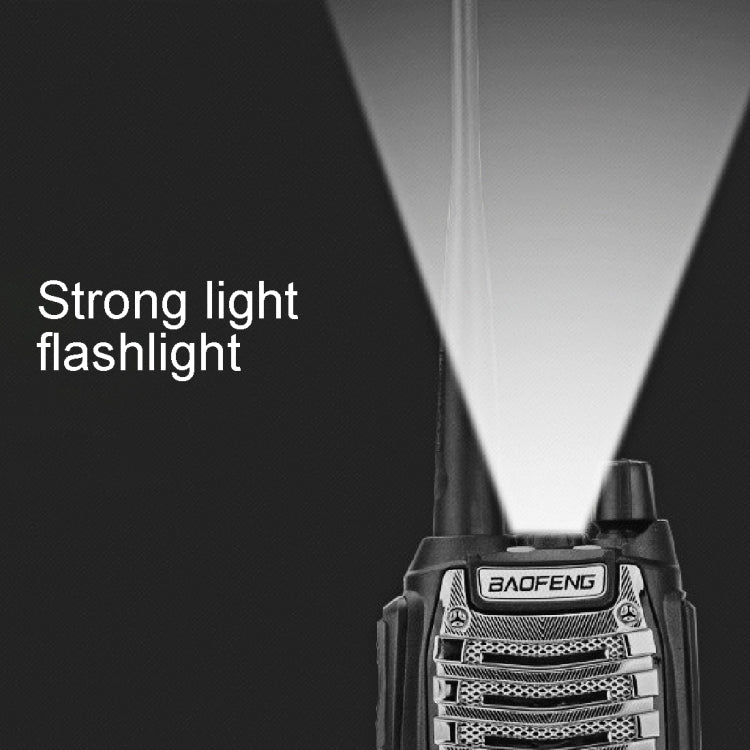

7. Bright flashlight illumination
8. Work mode: Same frequency simplex operation or different frequency simplex operation


Specification:
General
Model UV-8D
Material PC ABS
Frequency Range 400MHz-480MHz
Channel 16
Frequency Stability 2.5ppm
Frequency Step 12.5kHz, 25kHz
Antenna Impedance 50 ohms
Voltage 7.4V

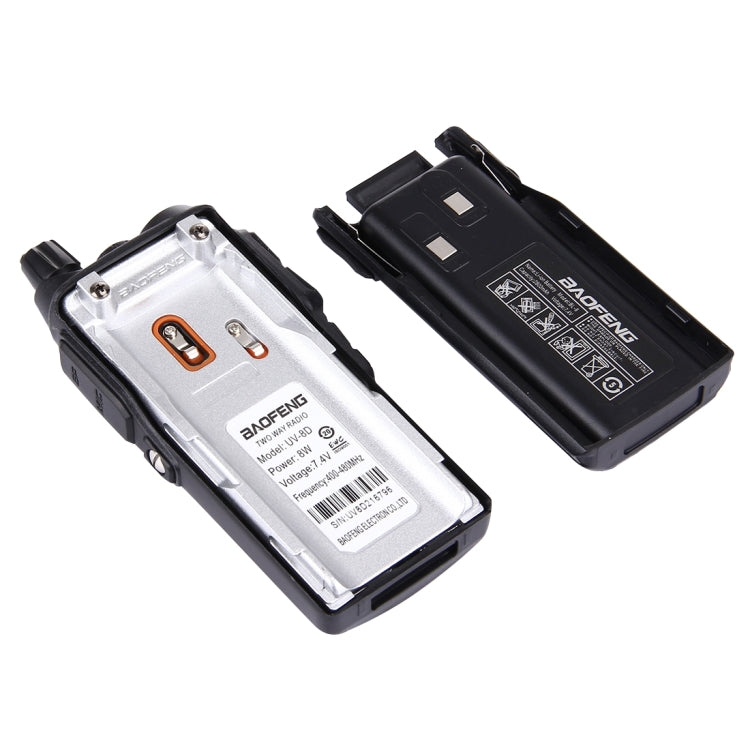

Battery Types Lithium-ion Battery
Battery Capacity 2800mAh
Operation Mode Simplex
Working Temperature -20C to 50C
Max Power 8W
Walkie Distance (Open) 5-10km
Walkie Distance (Barrier) 3-5km
Size 13.5*6*3.5cm
Weight 192g (with battery)
Transmitter Parameters
RF Power 5W/1W
Spurious Emission =< 7.5uW
Modulation Types FM, F3E
SNR >= -45dB(W), >= -40dB(N)
CTSCC/DCS Frequency Deviation 0.7+/-0.1KHz, 0.4+/-0.1KHz
Modulation Sensitivity (N)
Transmitting Current 8-12mV
Receiver Parameters
Stability -122dBm (at 12dB Sinad)
Intermodulation >= 65dB(W), >= 60dB(N)
Adjacent Channel Selectivity >= 65dB(W), >= 60dB(N)
Audio Output 1000mW
Current =< 380mA
Spurious Response >= 65dB

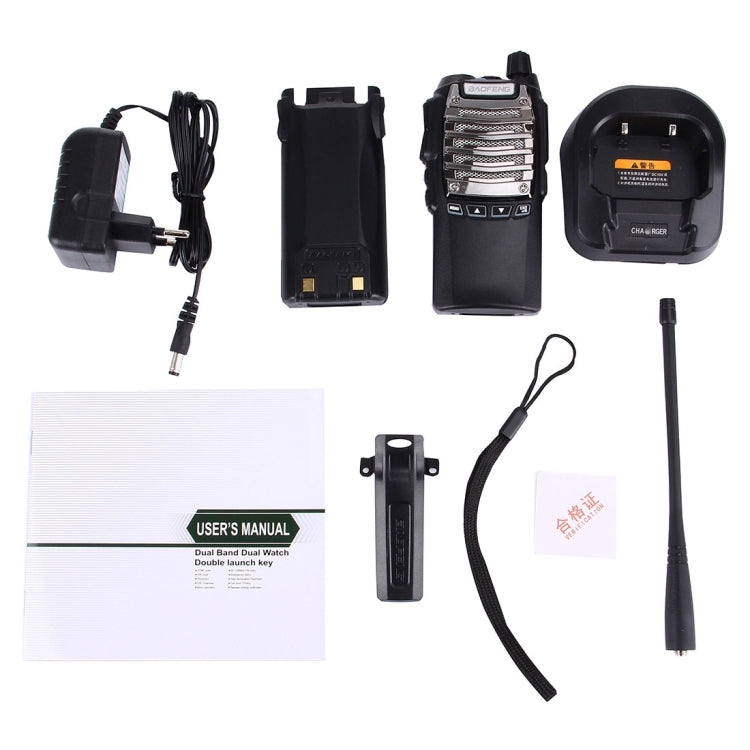

Package Include
Package Contents 1 x Walkie Talkie

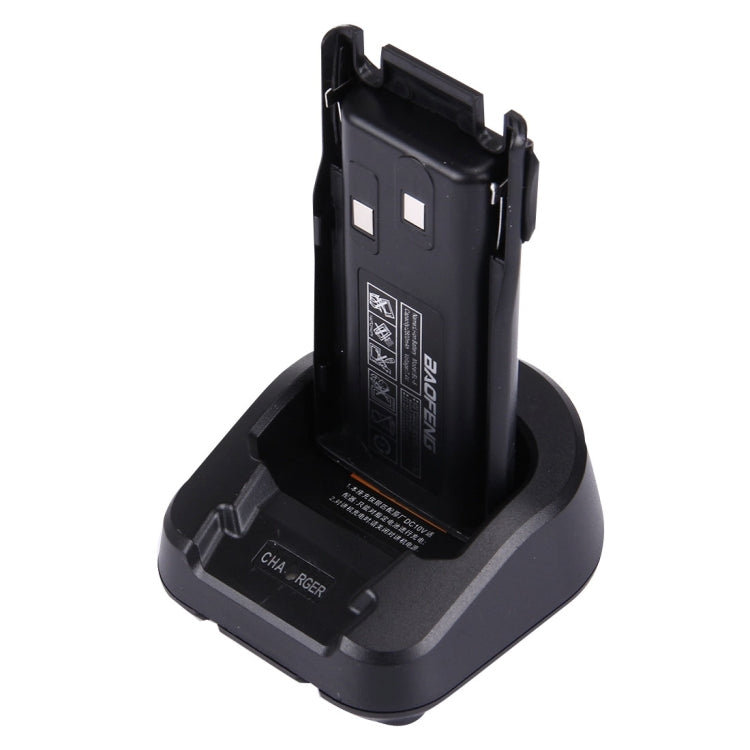

1 x Rechargeable Battery

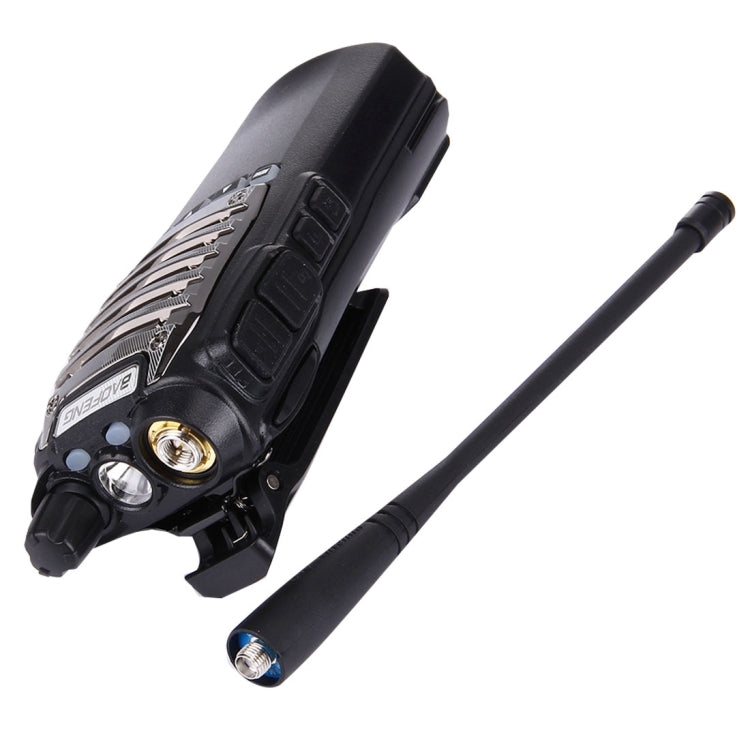

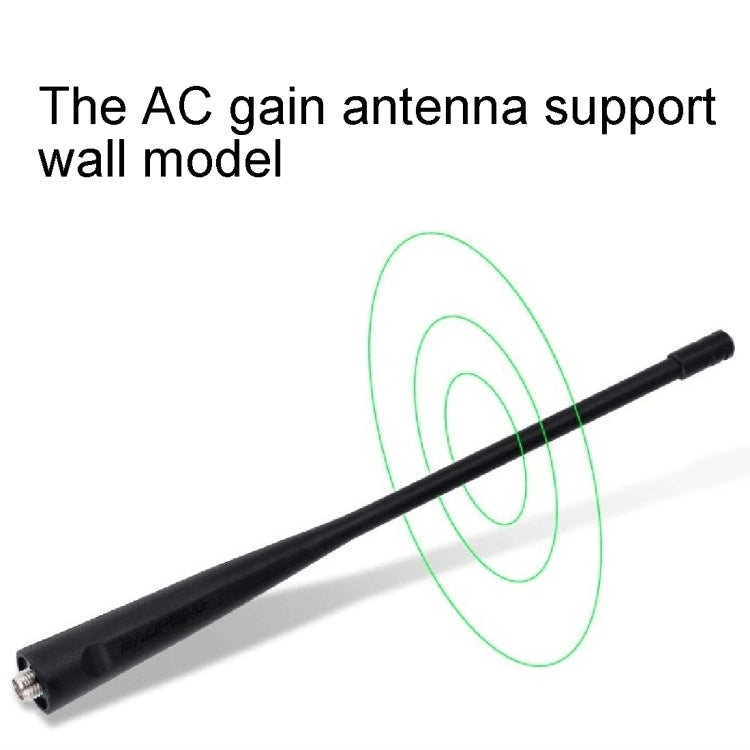

1 x Detachable Antenna

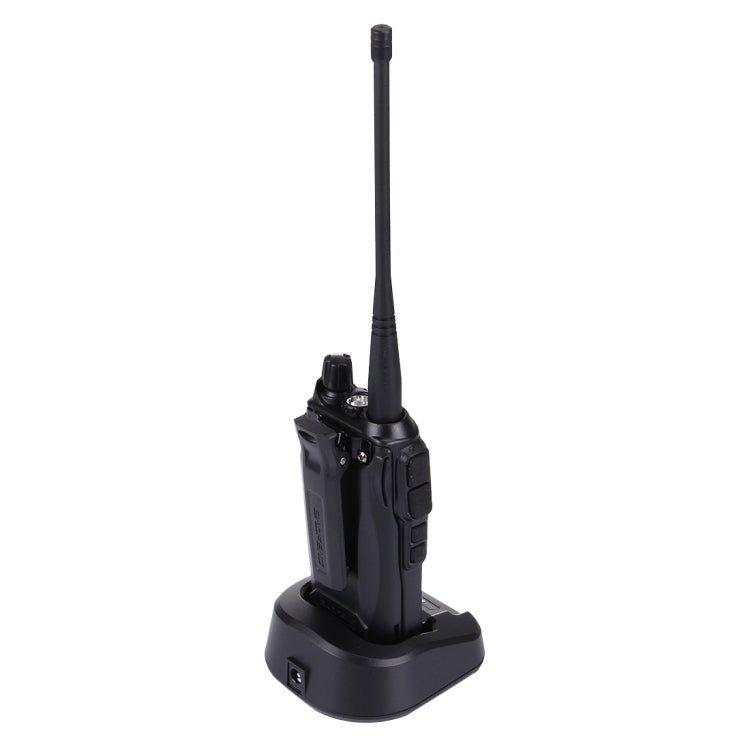

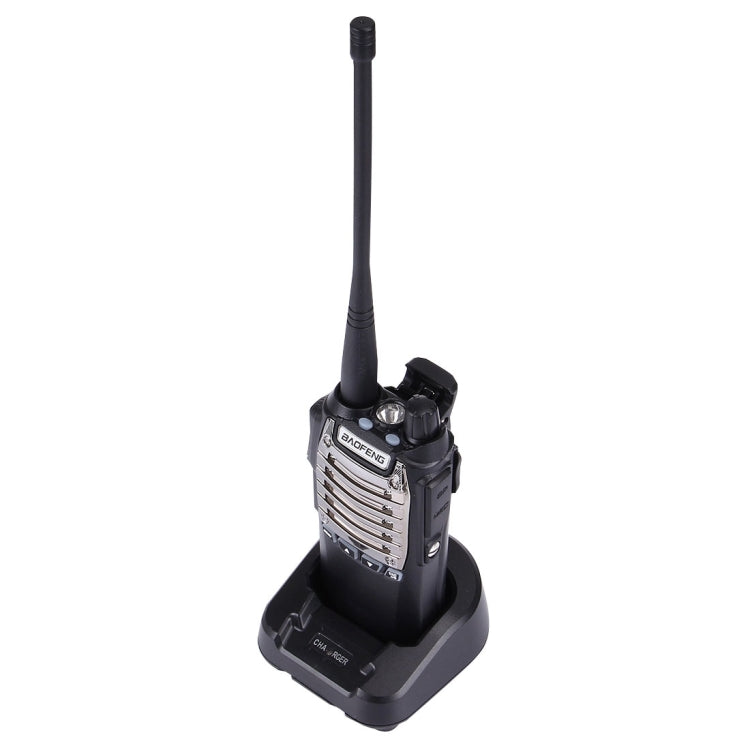

1 x Charger Base
1 x Belt-clip
1 x Strap
1 x User Manual
1 x Charger
Package Weight
One Package Weight 0.56kgs / 1.23lb
One Package Size 26cm * 21cm * 6cm / 10.24inch * 8.27inch * 2.36inch
Qty per Carton 20
Carton Weight 11.80kgs / 26.01lb
Carton Size 54cm * 44cm * 32cm / 21.26inch * 17.32inch * 12.6inch
Loading Container 20GP: 350 cartons * 20 pcs = 7000 pcs
40HQ: 814 cartons * 20 pcs = 16280 pcs
