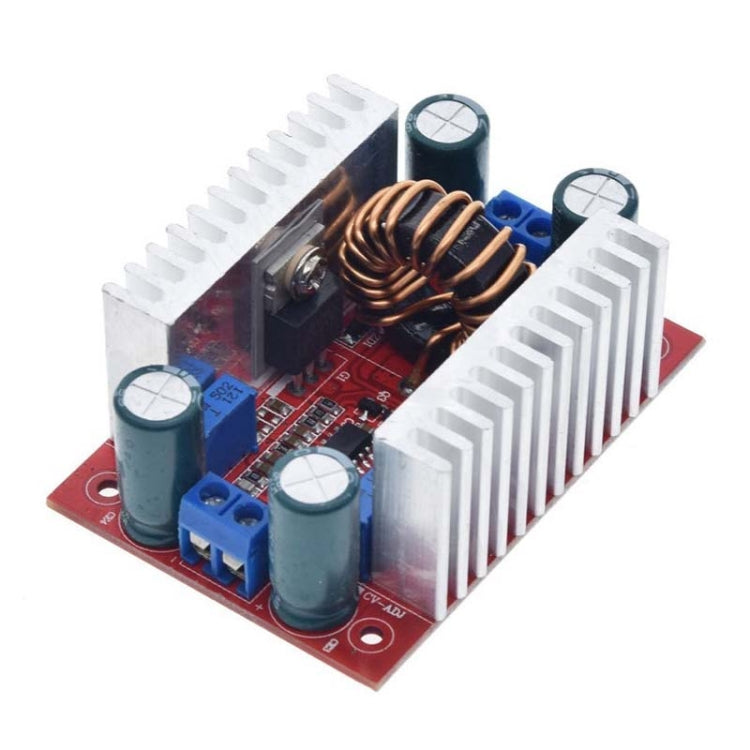

DC-DC 400W 15A Boost Converter Constant Current Power Supply LED Driver Voltage Charger Module, MK00132

Rs. 509.00
Quantity
Option:

πŸ“¦ Description


1. Module nature: non-isolated boost module
2. Input voltage: DC8.5-50V
3. Input current: 15A ((MAX) more than 8A please strengthen the heat dissipation)
4. Static operating current: 10mA (12V to 20V, the higher the output voltage, the static current will increase)
5. Output voltage: 19V
6. Output current: 12A (MAX) over 7A, please strengthen the heat dissipation
7. Operating temperature: -40-85 degrees celsius
8. Operating frequency: 150KHz
9. Conversion efficiency: 96 percent MAX
10. Overcurrent protection: yes (input more than 15A, automatically reduce the output voltage, there is a certain error range)
11. Input reverse connection protection: no
12. Constant current range: 0.2-12A
13. Installation mode: four 2.5mm screws
14. Output mode: wired output

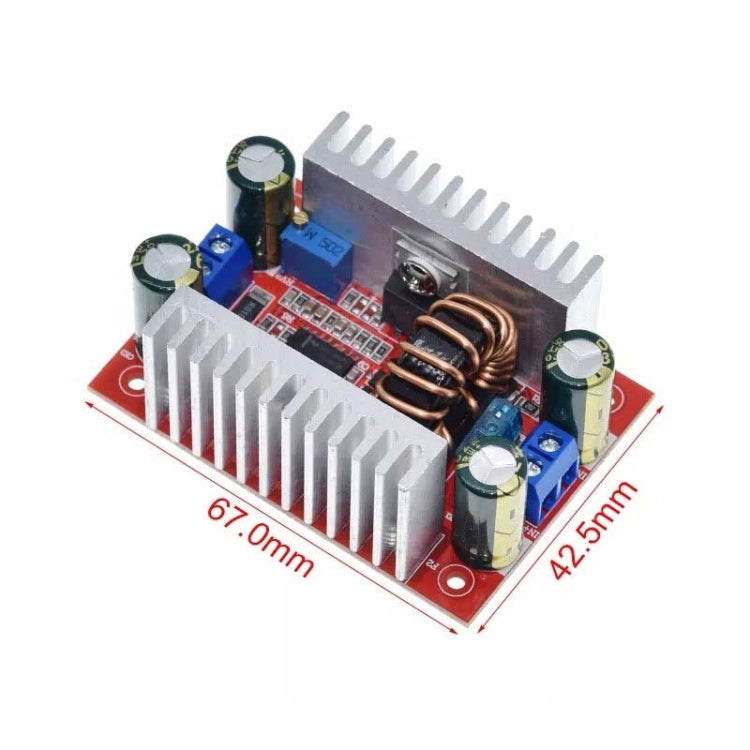

15. Size: 67 x 48 x 28mm
16. Weight: 60g


Specification:
Package Weight
One Package Weight 0.08kgs / 0.19lb
One Package Size 8cm * 6cm * 4cm / 3.15inch * 2.36inch * 1.57inch
