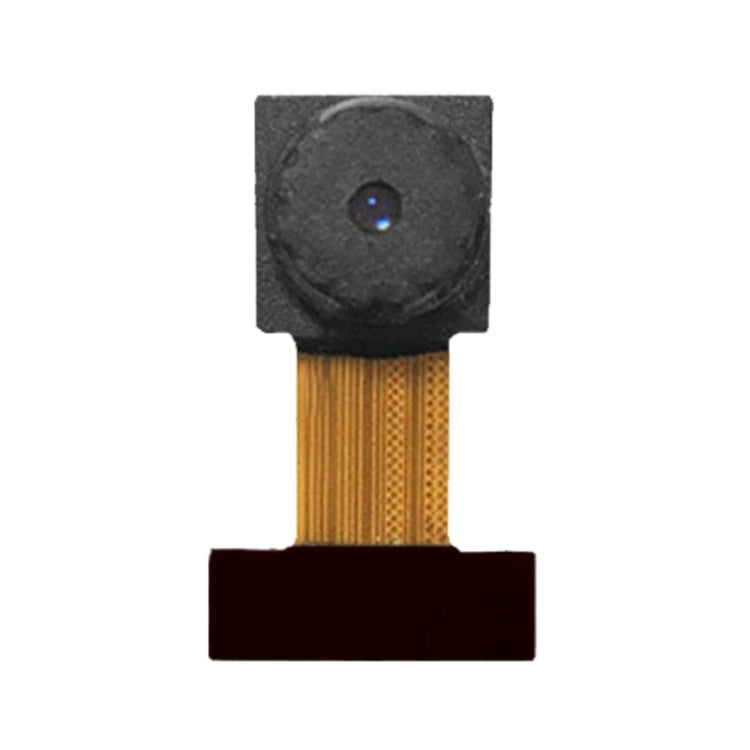

HDF3M-811 OV2640 DVP 24Pin Phone Built-in Compression Camera Module, HDF3M-811

Rs. 1,759.00
Quantity
Option:

📦 Description


1. 2 megapixel, UXGA (1632x1232), support dynamic, with JPEG picture compression
2. Can be used for cell phones, map transfer, PC multimedia, toys, digital cameras, scanning and other devices
3. Low light operation, high sensitivity, embedded portable applications, low operating voltage
4. Body material: FPC
5. Pixels: 2 megapixels (1632x1232)
6. Light-sensitive chip: OV2640 (1/4 inch) CMOS
7. Output format: YUV(422/420)/YCbcr422, RGB565/555, 8-bit compressed data, 8/10-bit original RGB data
8. Frame rate: UXGA/SXGA: 15fps; SVGA: 30 fps; CIF: 60 fps
9. Interface: DVP
10. System support: Android, Windows, Linux

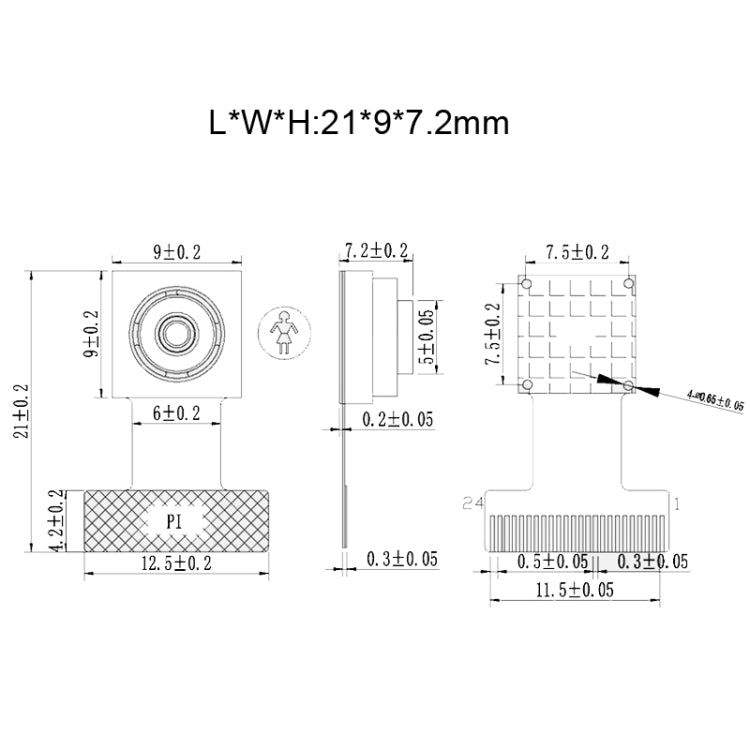

11. Size: about 21 x 9 x 7.2mm


Specification:
Package Weight
One Package Weight 0.02kgs / 0.05lb
One Package Size 10cm * 7cm * 2cm / 3.94inch * 2.76inch * 0.79inch
Qty per Carton 500
Carton Weight 12.00kgs / 26.46lb
Carton Size 30cm * 50cm * 40cm / 11.81inch * 19.69inch * 15.75inch
Loading Container 20GP: 444 cartons * 500 pcs = 222000 pcs
40HQ: 1031 cartons * 500 pcs = 515500 pcs
