HDMI Extender Over Cat5e / 6 (EU Plug), 50m

Rs. 6,389.00
Quantity
Option:

📦 Description

About the product

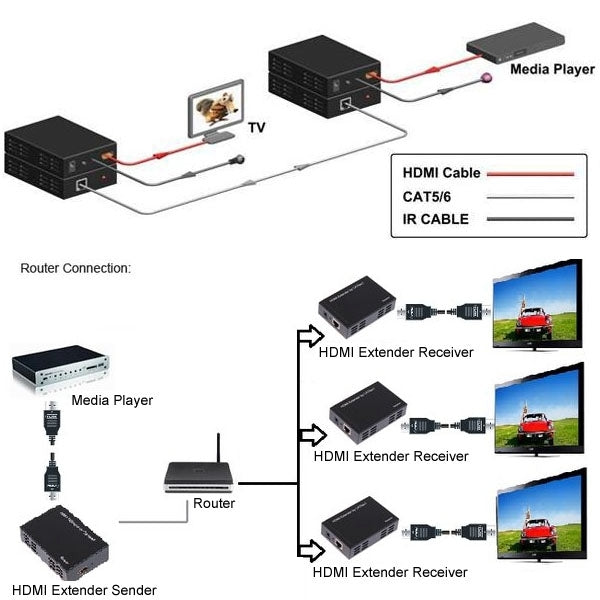

1. Transmitter combines HDMI video, audio and control signals, then transmits them through single CAT5e / 6 cable.
2. Receiver gets them, separates signal and rebuilds video, audio and control ones, outputs through HDMI interfaces.
3. Extending distance is 50 meters at resolutions 1080P 3D or 1920x1200 60fs, and 80 meters at 1080i/720P through single CAT5e cable
4. Support audio formats, Dolby True HD, DTS-master, etc
5. Support 3D signals (all 7 formats), such as Frame Packing, Side-by-Side, Top-to-Bottom, etc.
6. Support EDID call back
7. Support CEC pass through
8. VESA DDC and hot swap technology (HPD)
9. Support power over UTP cable, single 12V DC power supply from any side of TX or RX
10. Bi-direction remote IR (RX->TX and TX->RX)
11. Both HDMI input and output are compatible with HDCP 1.2
12. Be compatible with DVI 1.0
13. Support cascade to enhance extending distance
14. Industrial metal case, easy to install


Specification:
General
Video Bandwidth 165MHz
Frequency Bandwidth 4.95Gbps
Input/ Output TMDS Signal 1.2 volts (point to point)
ESD Level HBM +-8 kV
Input/ Output DDC Signal 5 volts (point to point)
Operating Temperature 0 ~ 40 Degree Celsius
Power Consumption <3.5W TX, <2.5W RX
Size 100mm x 65mm x 20mm
Package Include

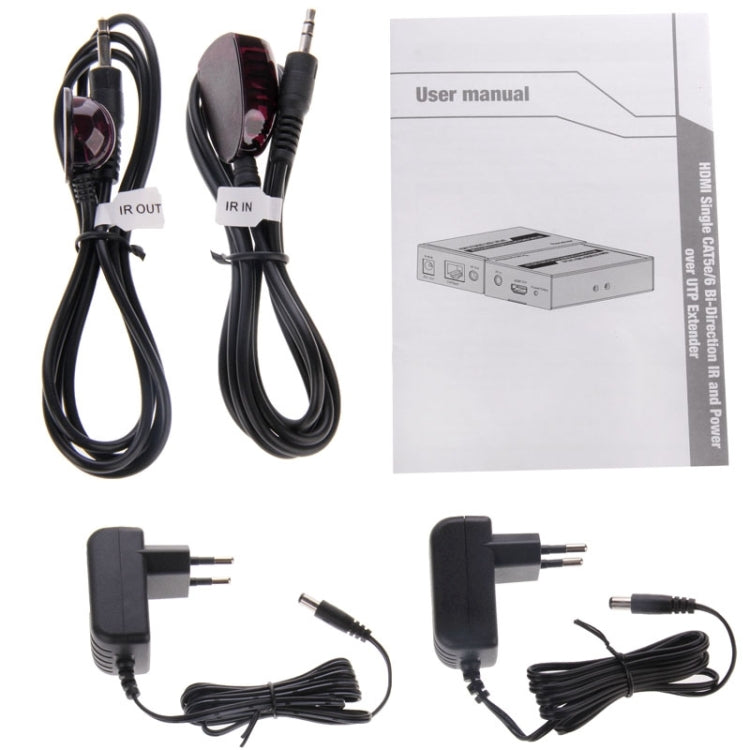

Package Contents 1 x Power Adapter
1 x User Manual

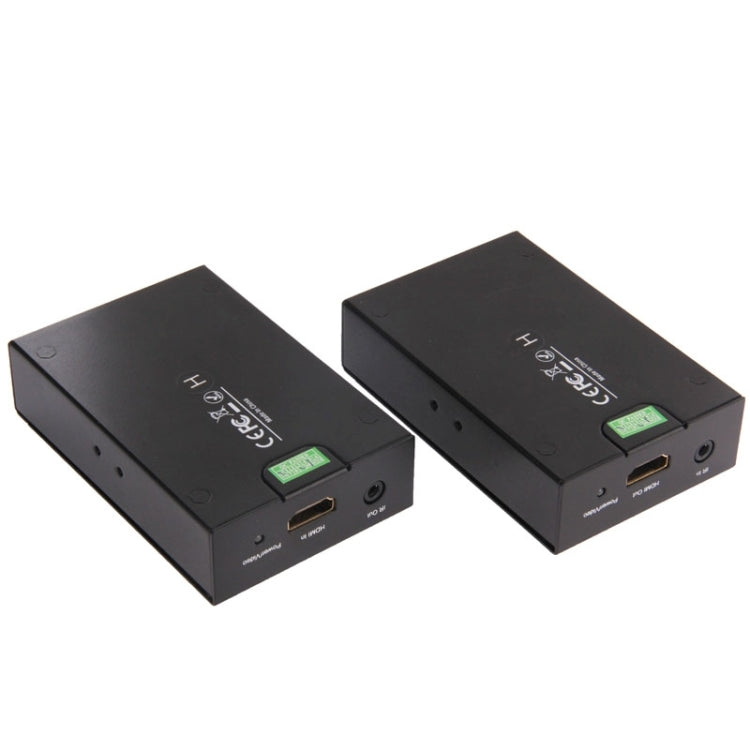

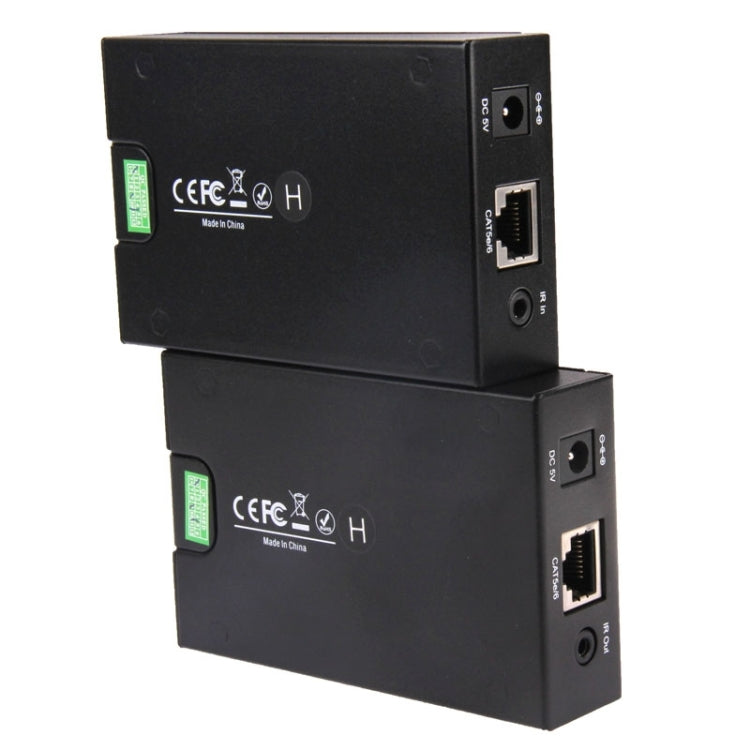

1 x Transmitter
1 x Receiver
2 x IR IN Cables
2 x IR OUT Cables
Package Weight
One Package Weight 0.78kgs / 1.72lb
One Package Size 22.6cm * 18cm * 5cm / 8.9inch * 7.09inch * 1.97inch
Qty per Carton 20
Carton Weight 16.00kgs / 35.27lb
Carton Size 55cm * 40cm * 25cm / 21.65inch * 15.75inch * 9.84inch
Loading Container 20GP: 484 cartons * 20 pcs = 9680 pcs
40HQ: 1125 cartons * 20 pcs = 22500 pcs
