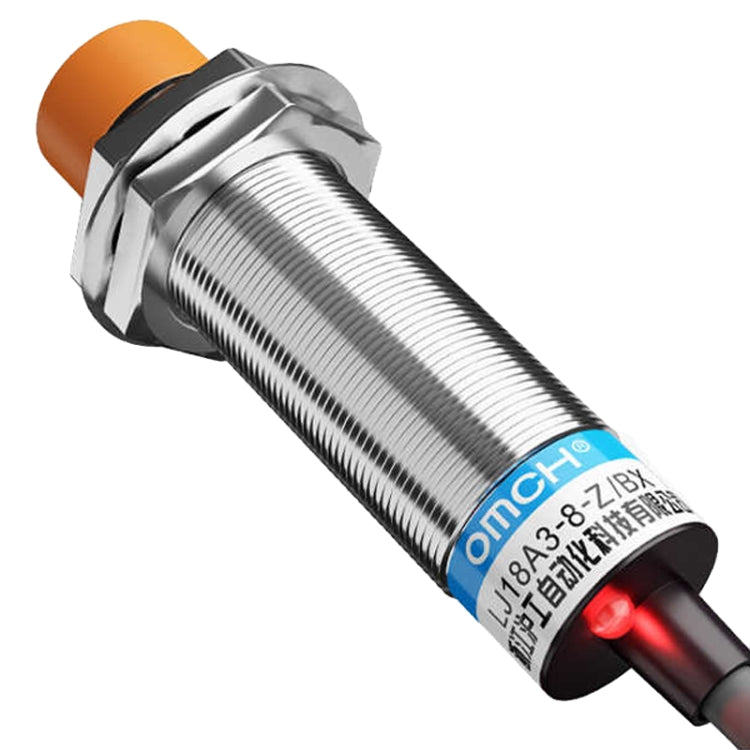

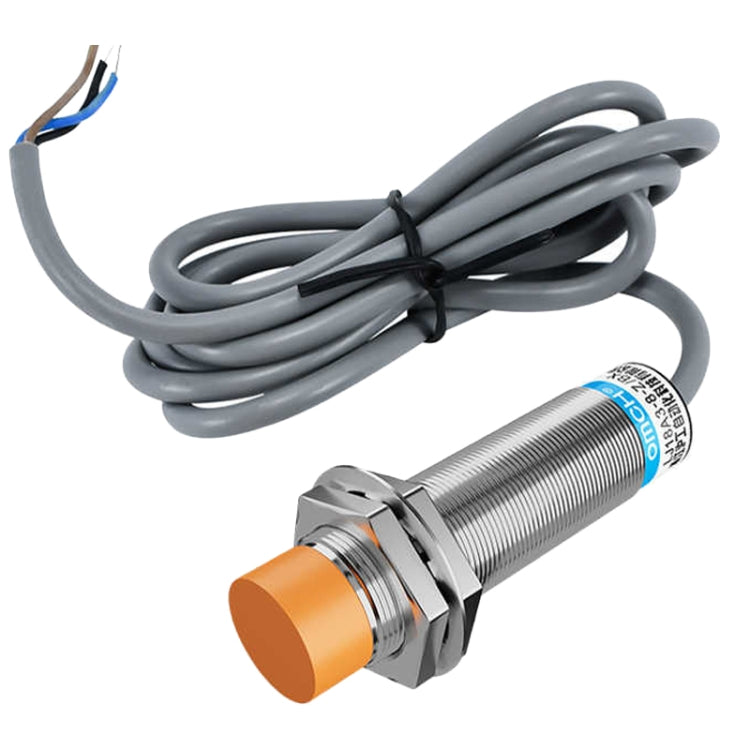

OMCH LJ18A3-8-Z/BX DC NPN 3-Wire Normally Open Sensors Inductive M18 Proximity Switch, LJ18A3-8-Z/BX

Rs. 605.00
Quantity
Option:

πŸ“¦ Description

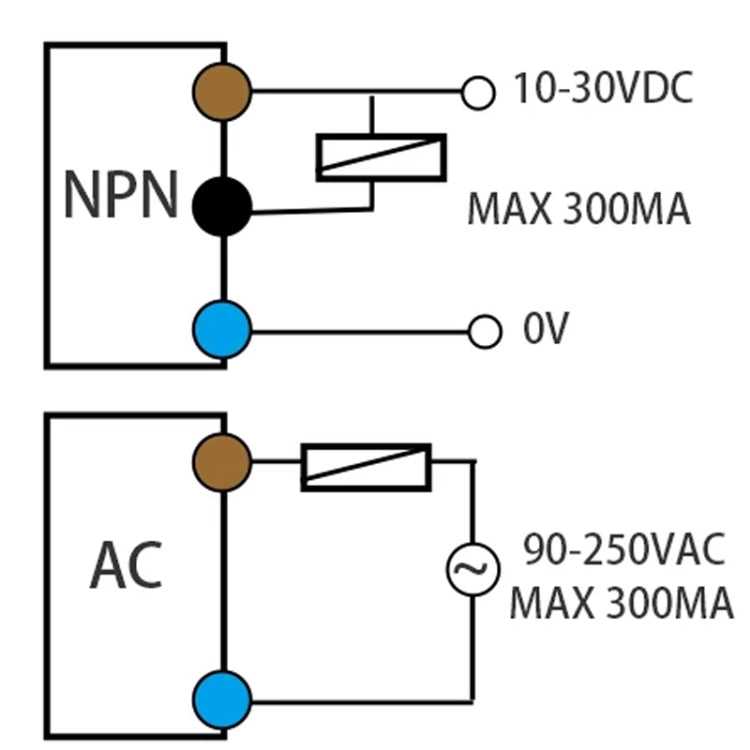

1. Output form: DC NPN three-wire normally open
2. Detection distance: about 8mm
3. Detecting object: metal object
4. Current: 300mA
5. Power supply voltage: DC12-24V (6-36V)
6. Weight: about 86.2 g
7. Wire length: about 1.1m

Features:

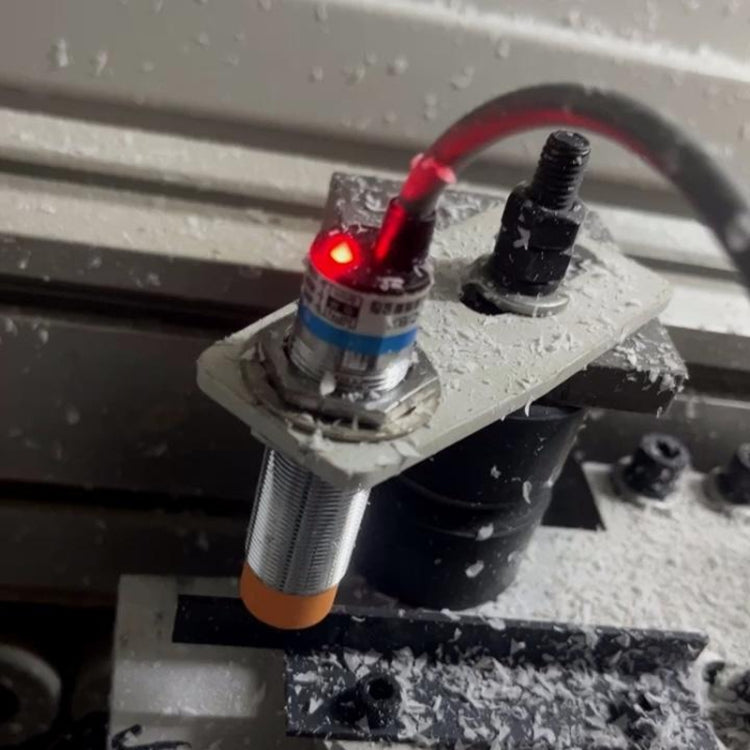

1. Proximity switch detects metal objects, the detection distance is about 8mm (when the proximity switch detects metal objects, the red light at the end will light up)
2. Built-in smart sensor chip on the top of the product, more sensitive to detect metal objects
3. Threaded design, solid and reliable, nickel-plated brass
4. Selection of wire, the standard line length of about 1.1 meters, the application of thicker cable, durable, good conductivity

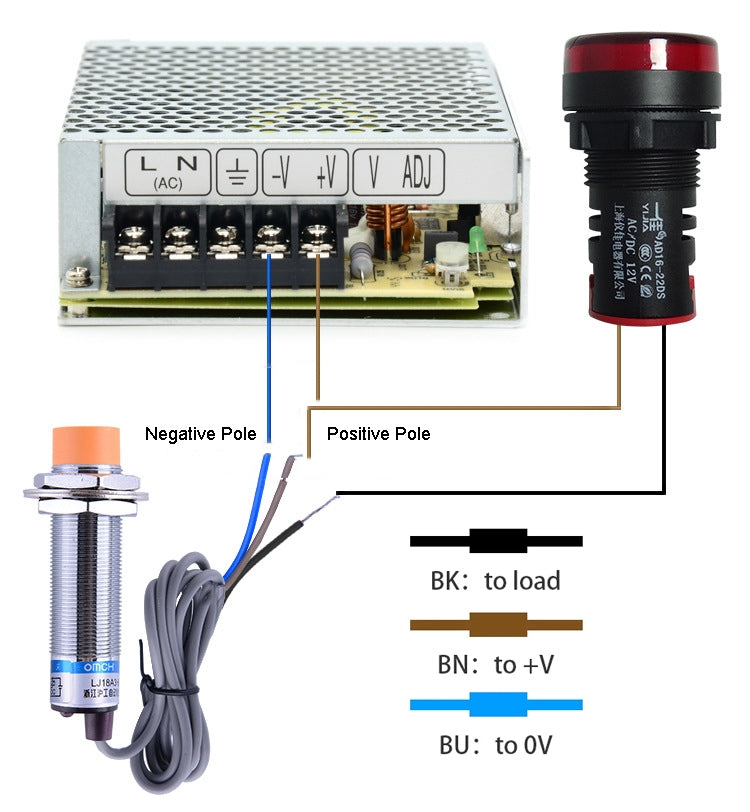

5. NPN: indicates a common positive voltage, negative voltage output; NPN NO: indicates that the normal is normally open, when the object is detected, the black line outputs a negative voltage signal


Specification:
Package Weight
One Package Weight 0.10kgs / 0.23lb
One Package Size 10cm * 6cm * 5cm / 3.94inch * 2.36inch * 1.97inch
