Waveshare 16498 3.2inch 320x240 Pixels Touch LCD (D), With Touch Panel And Stand-Alone Controllers, 3.2inch LCD (D)

Rs. 2,421.00
Quantity
Option:

📦 Description


1. Working voltage: 3.3V
2. Resolution: 320 × 240 pixels

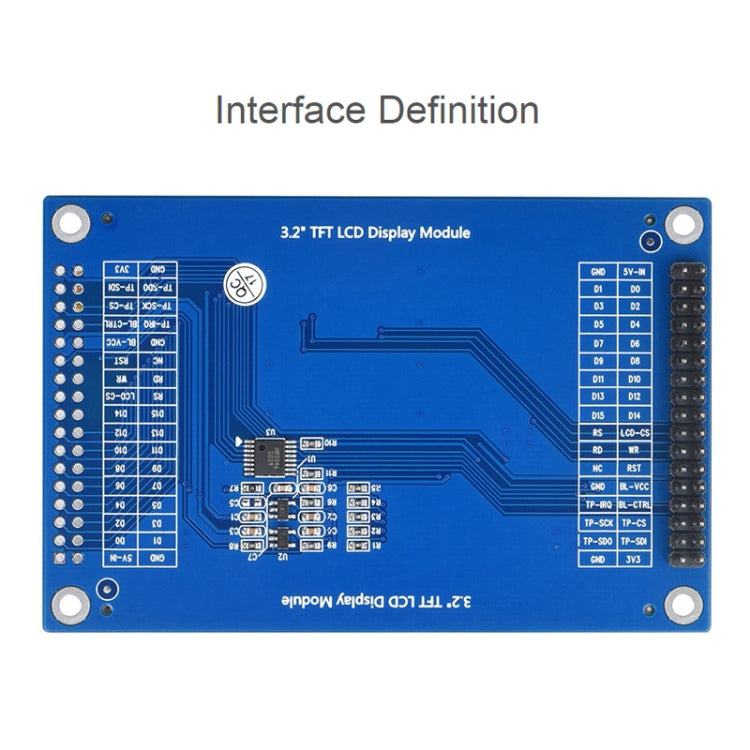

3. Interface: 8080 parallel port + SPI
4. Display panel: TN
5. LCD controller: ILI9341
6. Display size: 48.6 × 64.8 mm
7. Pixel pitch: 0.198 × 0.198 mm

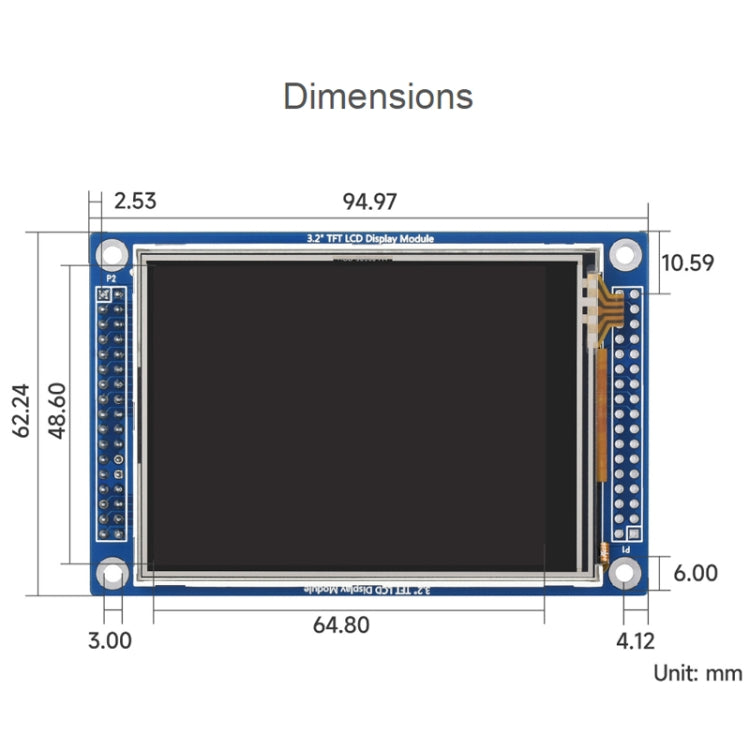

8. Module size 94.97 × 62.24mm

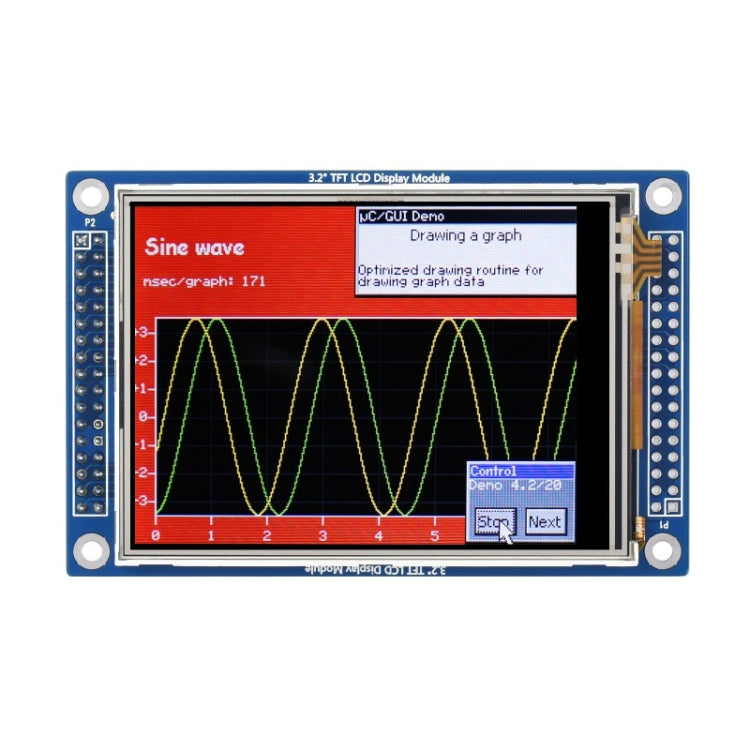

9. 320×240 resolution LCD, 262K colors, the color screen display is clear
10. Onboard touch chip, smoother touch effect than touch panel controlled by AD pin
11. Programmable backlight, more power saving
12. Self-contained development resources and manuals (take STM32 as an example)


Specification:
Package Weight
One Package Weight 0.15kgs / 0.34lb
One Package Size 7cm * 10cm * 4cm / 2.76inch * 3.94inch * 1.57inch
Qty per Carton 194
Carton Weight 30.00kgs / 66.14lb
Carton Size 40cm * 57cm * 23cm / 15.75inch * 22.44inch * 9.06inch
Loading Container 20GP: 508 cartons * 194 pcs = 98552 pcs
40HQ: 1180 cartons * 194 pcs = 228920 pcs
