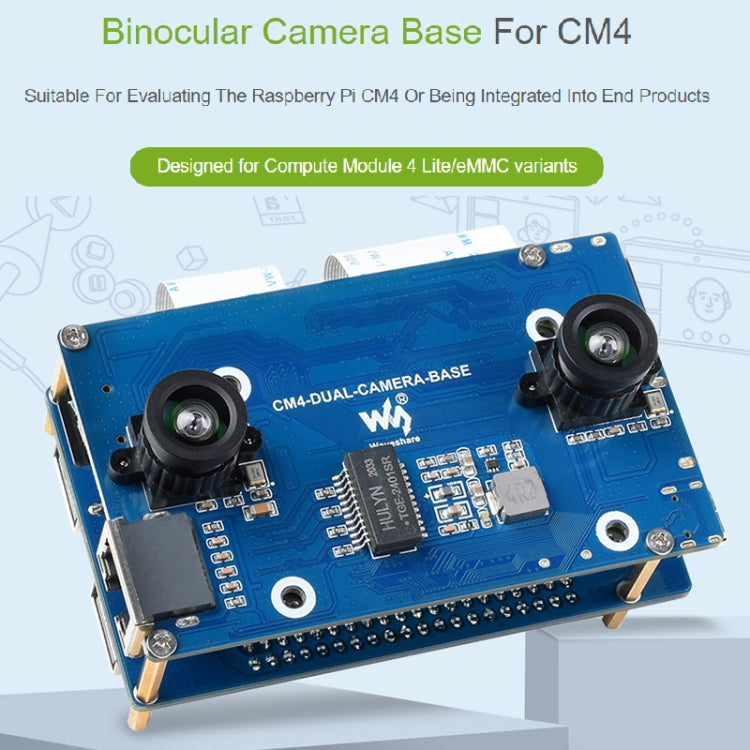

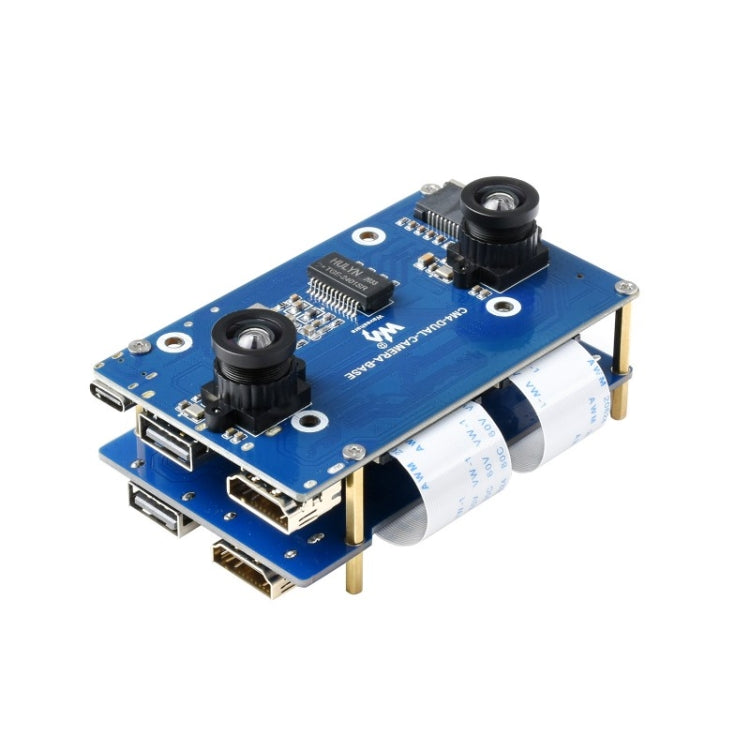

Camera Base Board

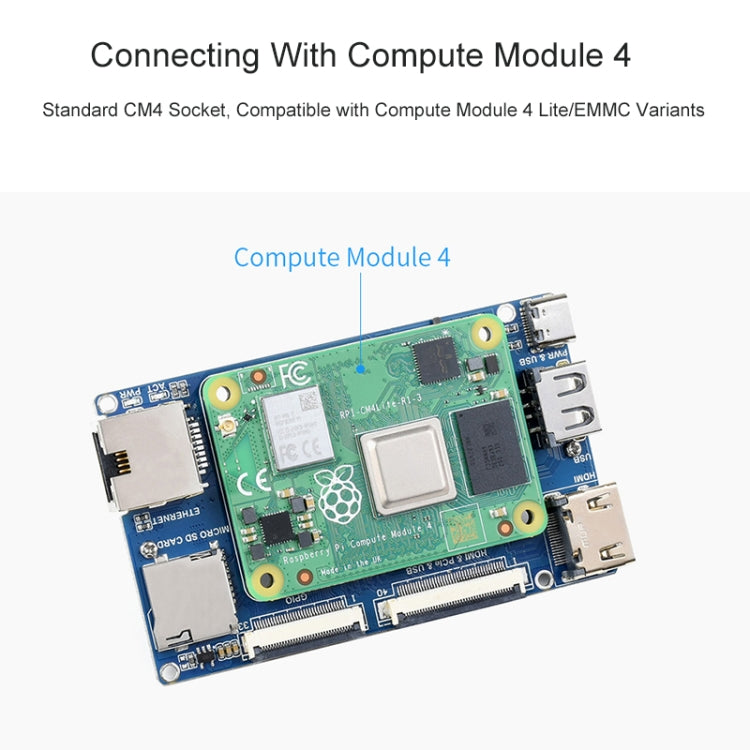

1. CM4 socket: Suitable for many variants of Compute Module 4
2. Networking: Gigabit Ethernet RJ45
3. USB: USB 2.0 x 1
4. FFC connector:
- HDMI-compatible & PCIe & USB FFC connector x 1
- GPIO FFC connector x 1
5. Dual-lens camera
- Pixels: 8MP
- Sensor: IMX 219
- Resolution: 3280 x 2464 (per channel)
- CMOS size: 1/4 inch
- Aperture: F2.4
- Focal length: 2.6mm
- FOV: 83/73/50 degree (diagonal/horizontal/vertical)
- Distortion: Less than 1%
- Baseline length: 60mm
6. Video: HDMI-compatible x 1, supports 4K 30fps output
7. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
8. Power input: 5V/2.5A

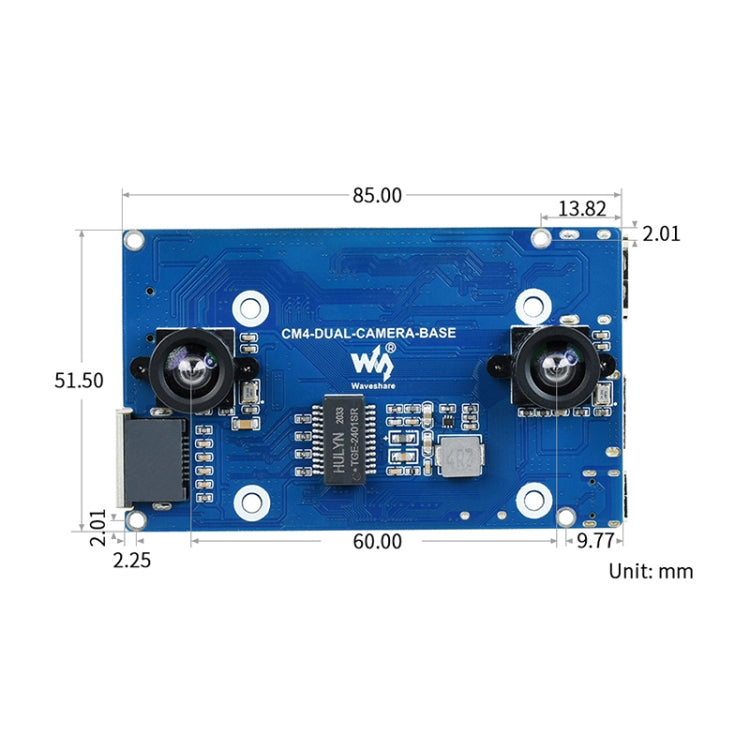

9. Dimensions: 85.0 x 51.5mm

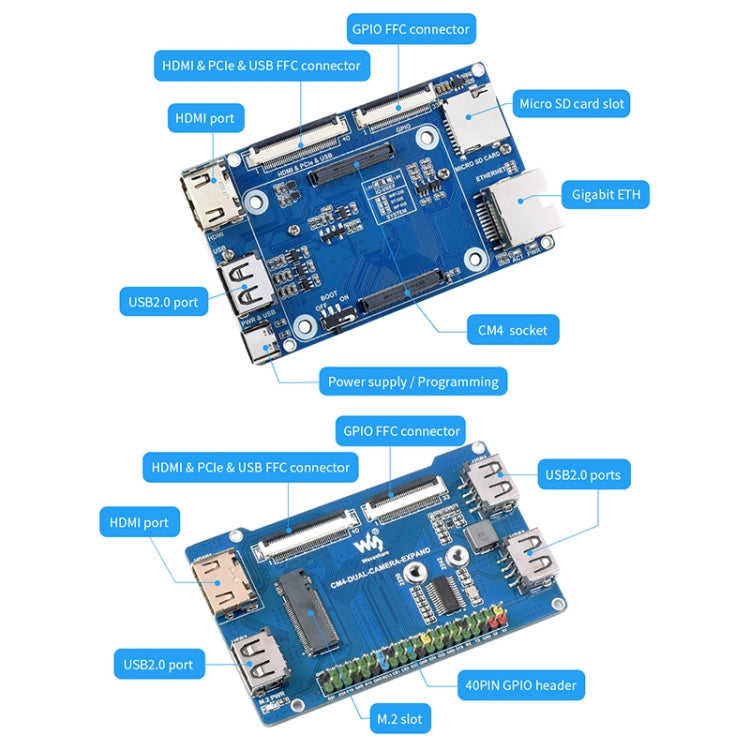

Interface Expander
1. USB: USB 2.0 x 3
2. FFC connector:
- HDMI-compatible & PCIe & USB FFC connector x 1
- GPIO FFC connector x 1
3. Other connector:
- M.2 M KEY x 1, for connecting NVME SSD or communication module
- Raspberry Pi 40PIN GPIO header x 1
4. Video: HDMI-compatible x 1, support 4K 30fps output
5. Dimensions: 85.0 x 51.5mm

Package List
1. Dual camera base x1
2. Screws pack x1
3. Interface expander x1
4. FFC 2PCS x1
Check compatibility with your model before ordering.
