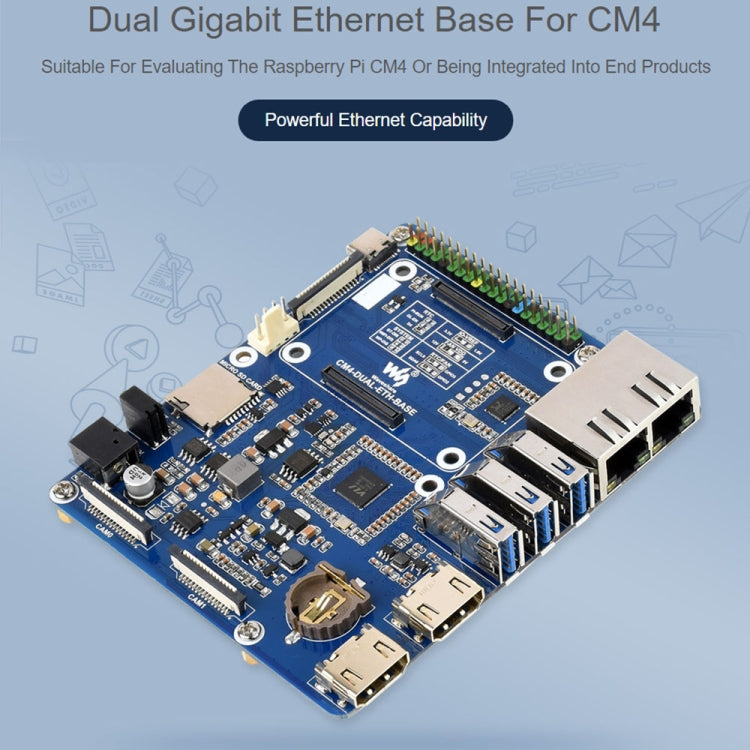

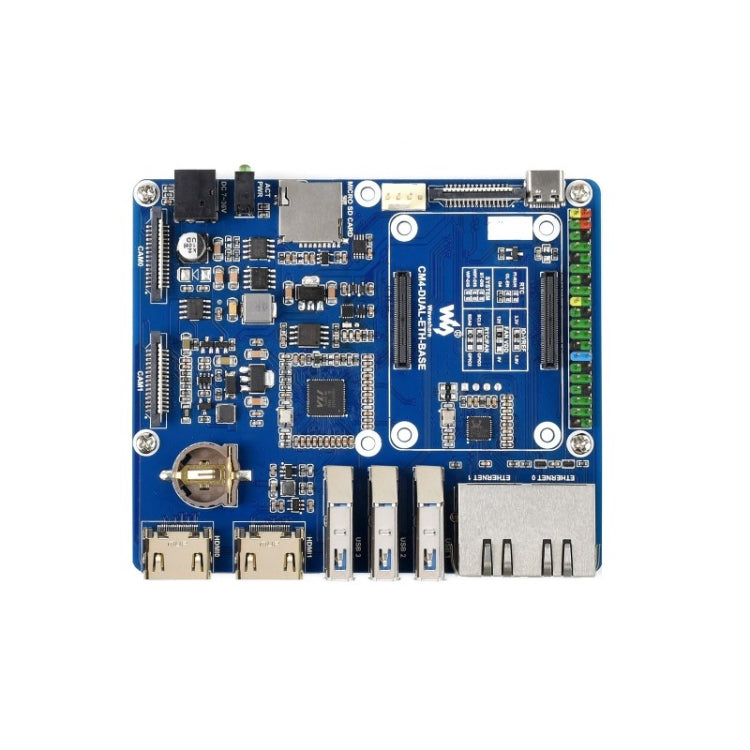

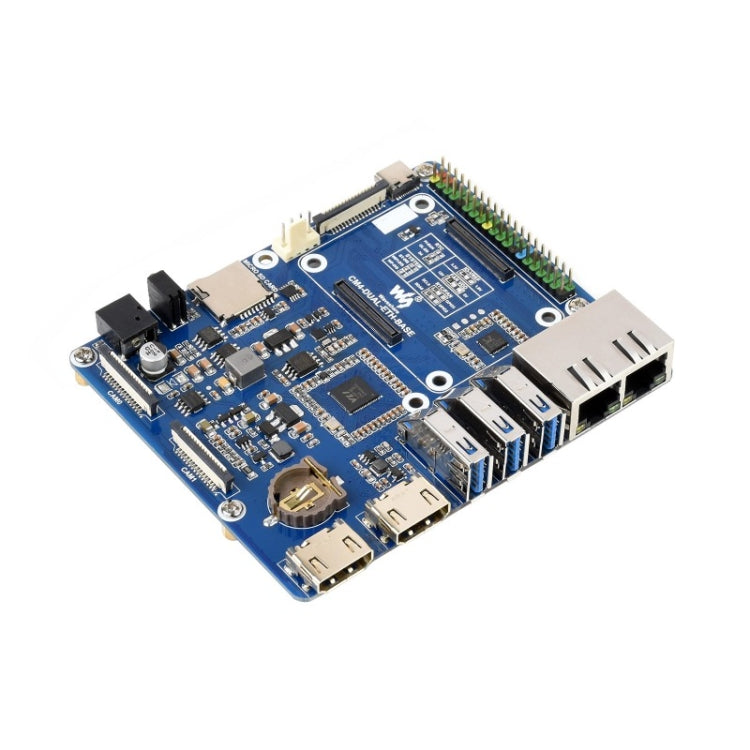

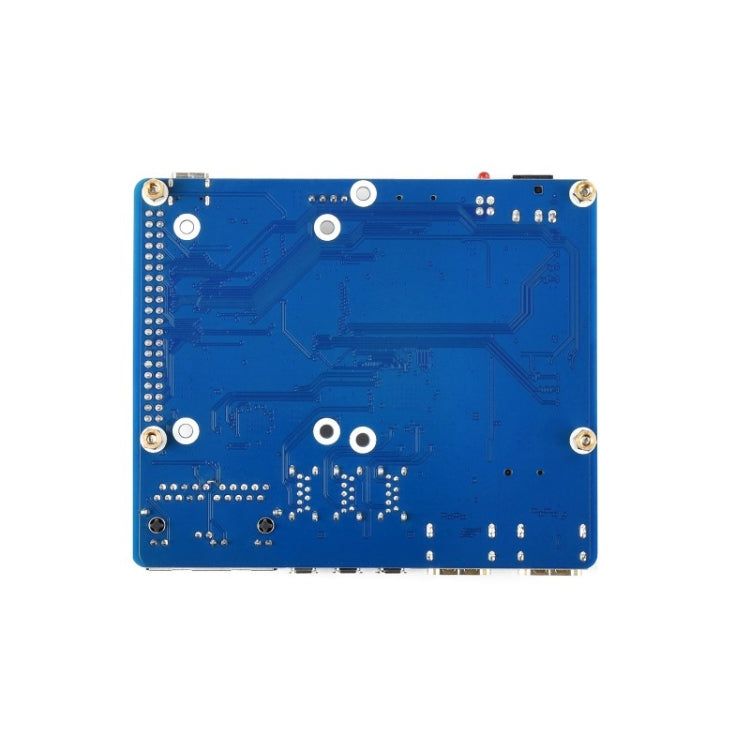

Waveshare Compute Module Dual Gigabit Ethernet Base Board for Raspberry Pi CM4, For Raspberry Pi CM4

Rs. 5,902.00
Quantity
Model:

📦 Description

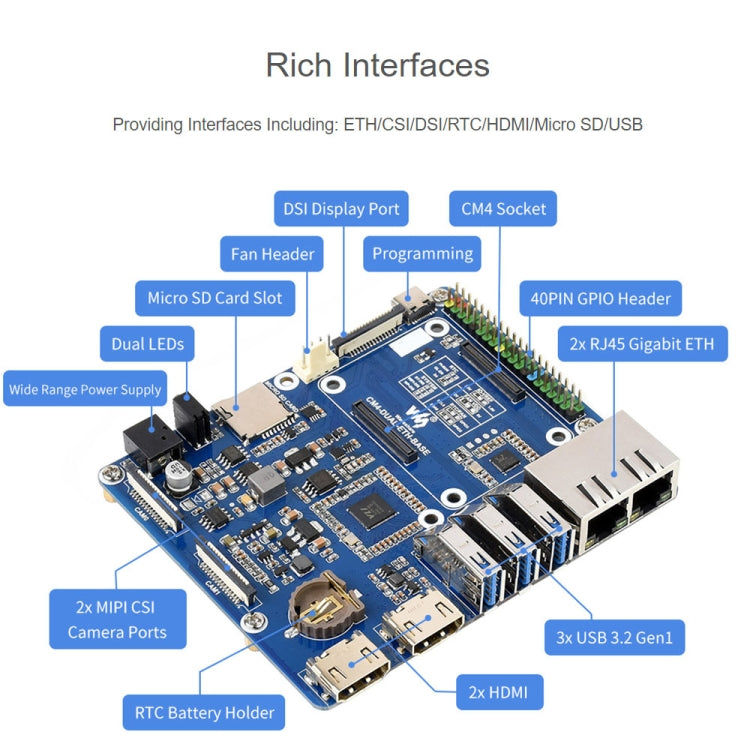

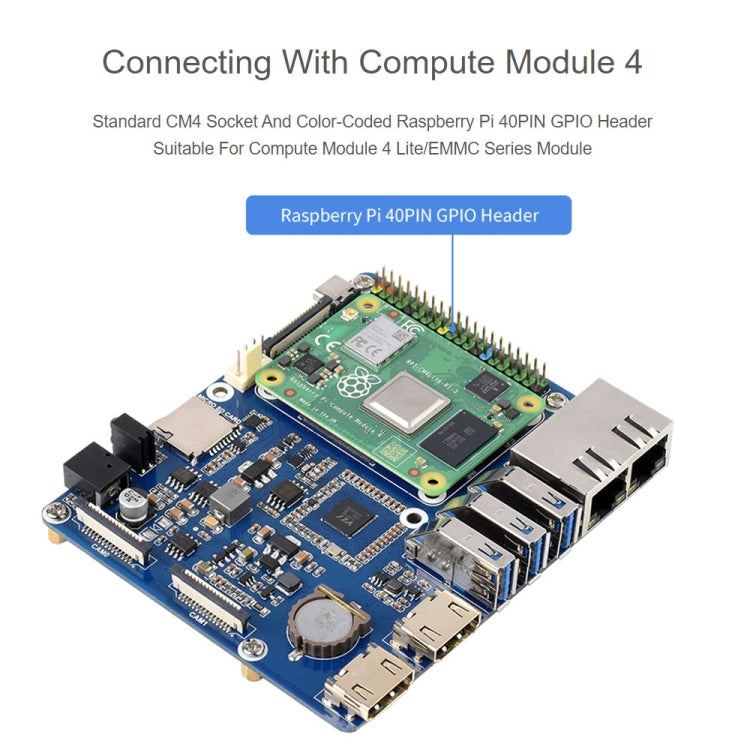

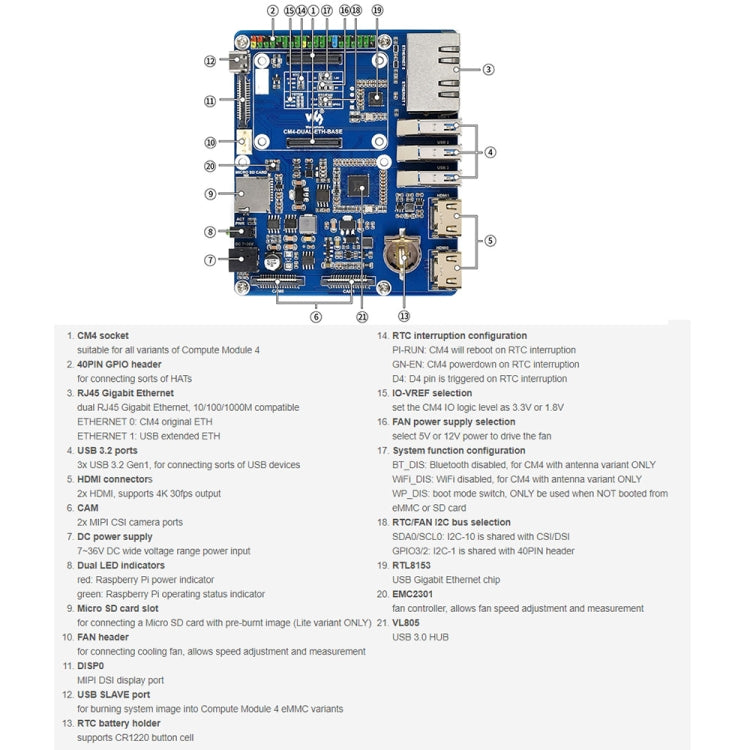

1. CM4 socket: Suitable for all variants of Compute Module 4
2. Ethernet: Dual Gigabit Ethernet RJ45
3. USB: USB 3.2 Gen1 x 3
4. PIN header: 40PIN GPIO header x 1
5. HD media interface: HD-MI x 2, supports 4K 30fps output
6. DSI display: MIPI DSI display port x 1, 15pin 1.0mm FPC connector
7. CSI camera: MIPI CSI-2 camera port x 2, 15pin 1.0mm FPC connector
8. Power input: 7V-36V
9. FAN: 5V/12V, allows speed adjustment and measurement
10. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
11. SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants


Specification:
Package Weight
One Package Weight 0.09kgs / 0.21lb
One Package Size 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch
Qty per Carton 200
Carton Weight 17.80kgs / 39.24lb
Carton Size 46cm * 32cm * 32cm / 18.11inch * 12.6inch * 12.6inch
Loading Container 20GP: 566 cartons * 200 pcs = 113200 pcs
40HQ: 1314 cartons * 200 pcs = 262800 pcs
