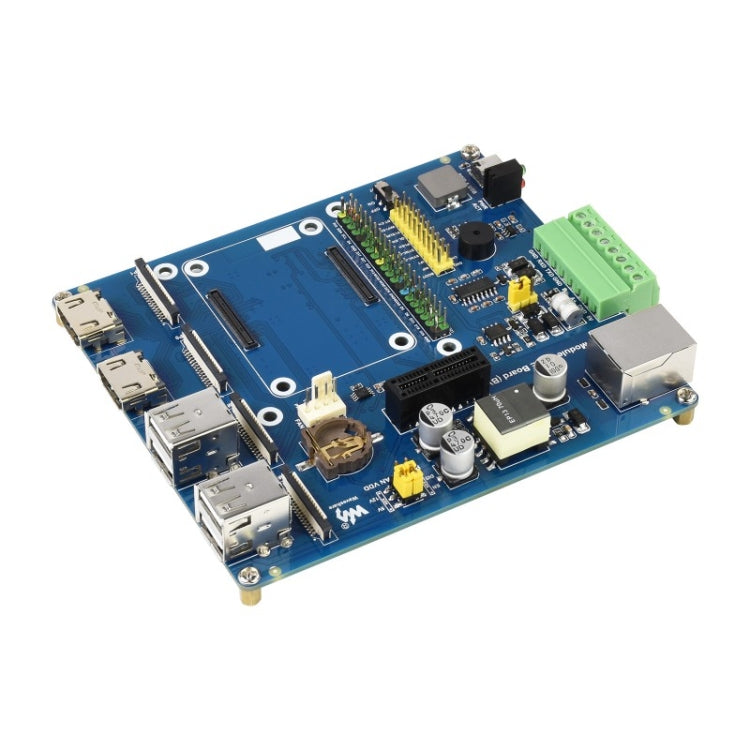

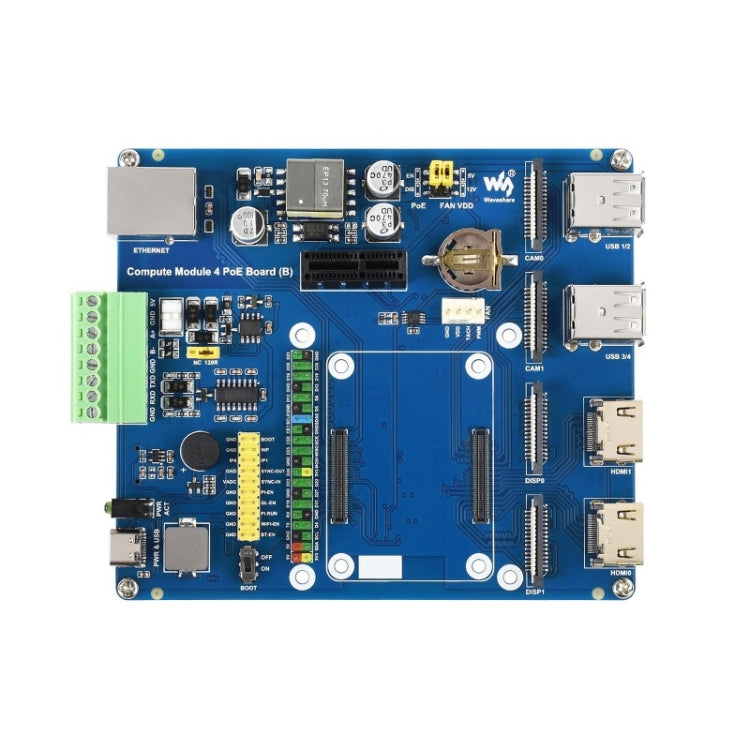

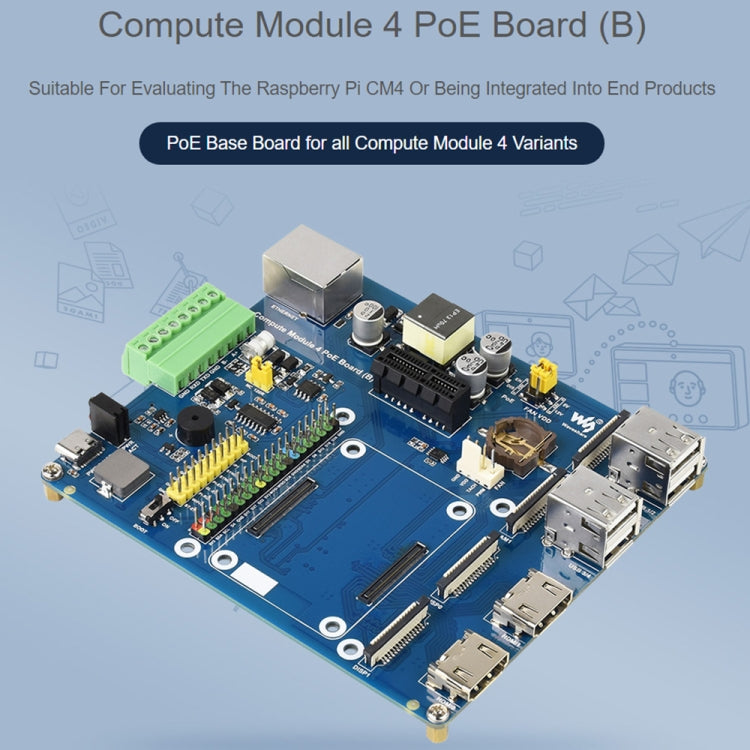

Waveshare Compute Module IO Board with PoE Feature (Type B) for Raspberry Pi all Variants of CM4, Type B for Raspberry Pi CM4

Rs. 4,885.00
Quantity
Option:

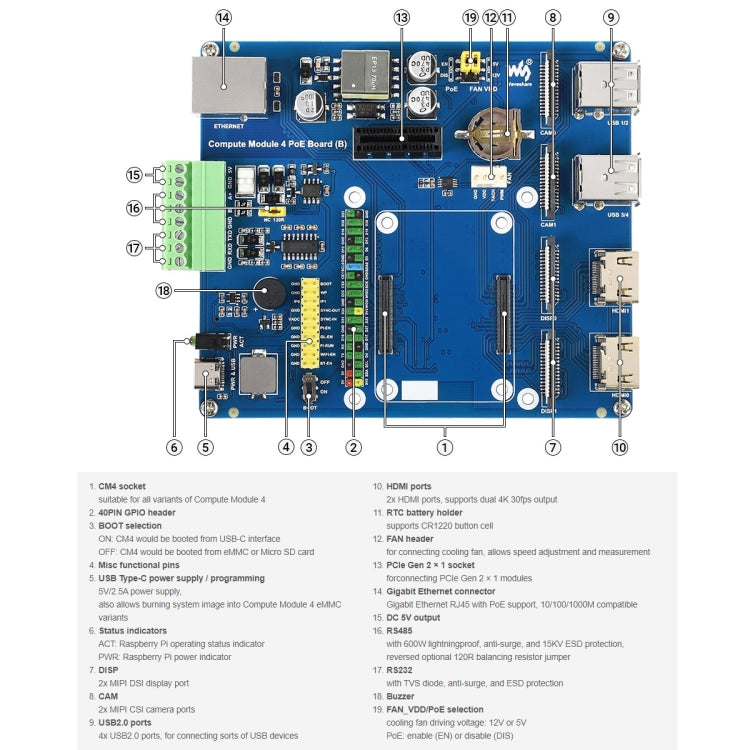

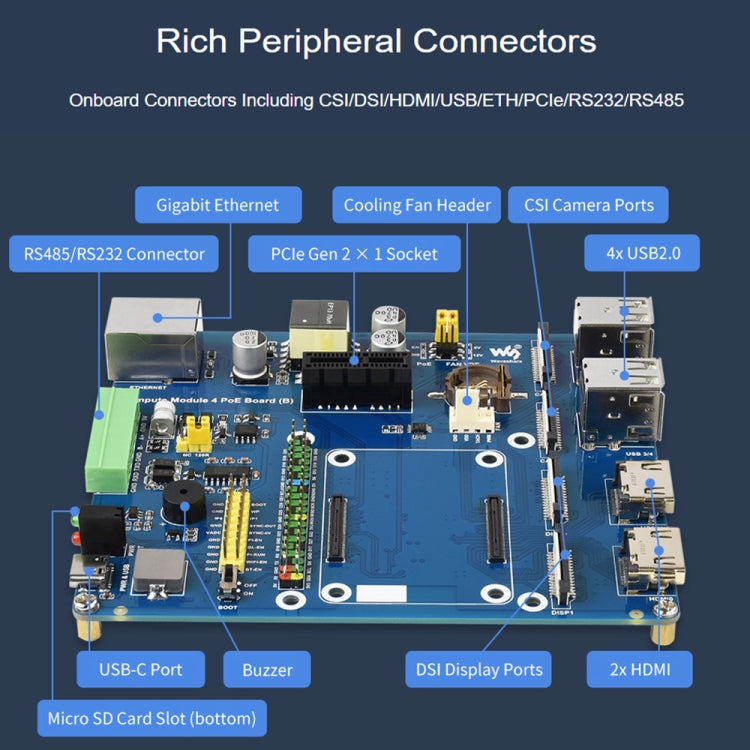

📦 Description

1. POE: Integrates 802.3af-compliant PoE circuit (5V/2.5A)
2. USB: USB 2.0 x 4
3. GPIO: Raspberry Pi 40 PIN GPIO x 1
4. Header:
- RS485 x 1
- RS232 x 1
- PCIe Gen 2 x 1
5. HD media interface: HDMI x 2, supports 4K 30fps output
6. DSI display: MIPI DSI x 2 (15pin 1.0mm FPC)
7. CSI camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC)
8. Power input: 5V
9. FAN: 5V / 12V (Allows speed adjustment and measurement)

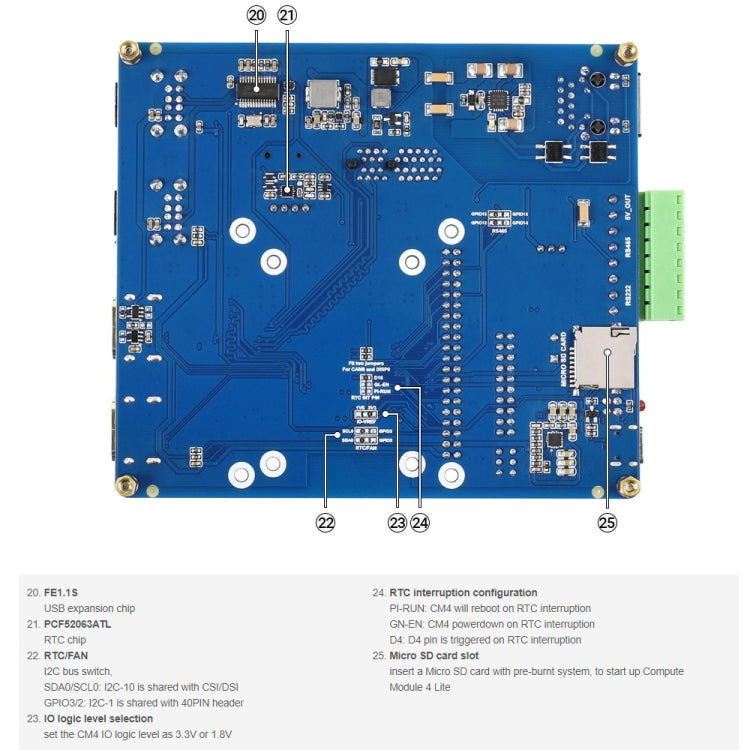

10. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
11. RJ45 Ethernet: Gigabit Ethernet

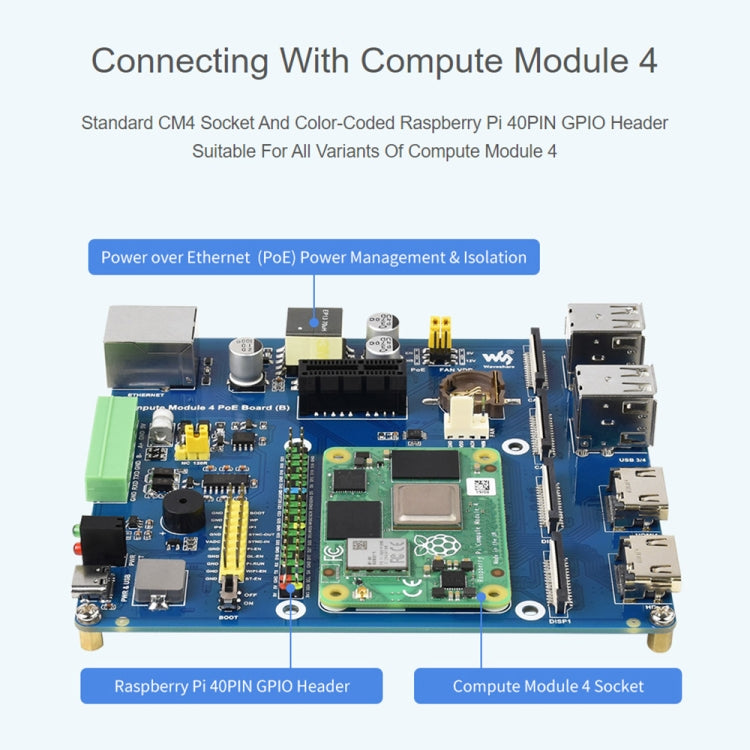

12. CM4 slot: Suitable for all variants of Compute Module 4
13. SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

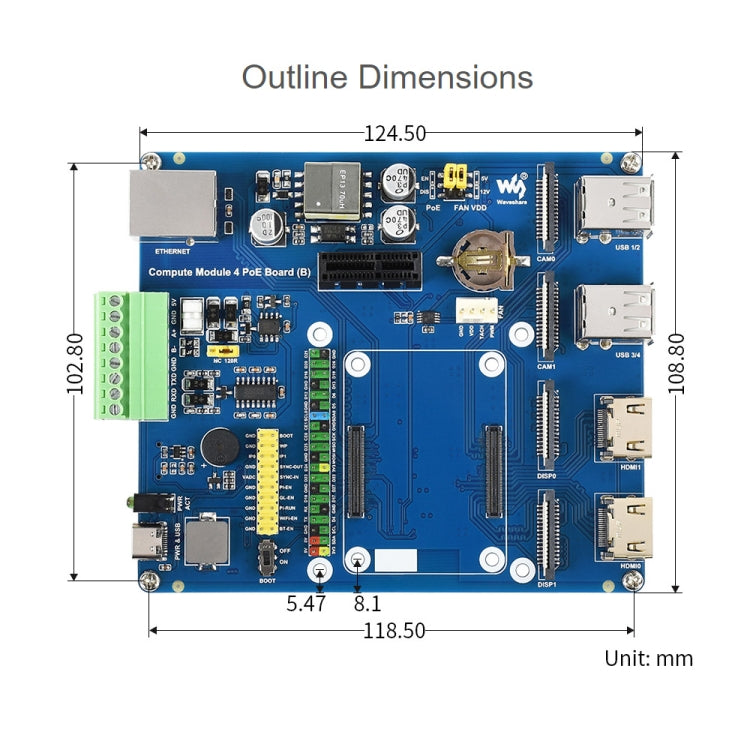

14. Size: 124.50 x 108.80mm


Specification:
Package Weight
One Package Weight 0.13kgs / 0.28lb
One Package Size 16cm * 10cm * 4cm / 6.3inch * 3.94inch * 1.57inch
Qty per Carton 120
Carton Weight 14.50kgs / 31.97lb
Carton Size 48cm * 40cm * 40cm / 18.9inch * 15.75inch * 15.75inch
Loading Container 20GP: 347 cartons * 120 pcs = 41640 pcs
40HQ: 806 cartons * 120 pcs = 96720 pcs
